Eigenschaften

Technische Daten

Applicable Industries: Building Material Shops, Construction worksÂ

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 6 months

Core Components: Engine

Condition: New

Power Source: Gasoline/Diesel

Weight: 56 kg

Dimension(L*W*H): 950+610+720

Warranty: 6 months

UNIQUE SELLING POINT: High operating efficiency

After-sales Service Provided: Overseas service center available

Guard Ring Diameter: 950mm

Operating Weight: 82kg

Max Blade Pitch Angle: 30

No. Blades: 4

Blade Operating Speed: 61-131 RPM

Engine: Honda GX160 or Robin EY20D

Zertifizierung: CE: ISO9001

Grundinformation

Zertifizierung: CE: ISO9001

Zahlung und Versand AGB

Packaging Details: Wooden Case or As your require

Supply Ability: 600 Set/Sets per Month

Produkt-Beschreibung

Our Services

1. Your inquiry will be reply within two hours.

2.Fast delivery,with 7---10days.

3.Packing:you will receive a perfect product with strong outside packing.

4.With advanced first-level facilities and testing equipment,to insure no mistake on the dimention of the products.

5.No M.O.Q,because we are manufacture.

6.24 hours on line,no limited to talk to us.

7.Return Policy:We gladly acept returns for item purchased within a 30 day period,provided it's still in the orginal packing,not used nor damaged.

8.Warranty Claims:

The warranty covers any defect of the product for a period 12 months.It's doesn't cover items that are not correctly installed or over tightened which may cause premature failure.Installation or any other fee's are not refundable.

Yangfine Machinery

Web:www.yangfine.com

Model

ET24-H

ET24-R

ET32-H

ET32-R

PF36-H

PF36-R

PF46-H

PF46-R

Dimension-mm(in)

Folded

950×610×720

(68×24×38)

1040×780×720

(41×31×28)

2100×950×1010

(83×37×40)

2100×1135×1010

(83×45×40)

Unfolded

1730×610×970

(68×24×38)

1820×780×970

(72×31×28)

Guard Ring Diameter-mm(in)

610(24)

780(31)

950(37)

1135(45)

Operating Weight-kg(lb)

56(123)

58(128)

2(137)

64(141)

82(181)

84(185)

95(209)

104(229)

Handle Type

Foldable

Straight

Gearbox

Small

Heavy-Duty

Combo Blade Size-mm(in)

230×120(9×5)

310×150(12×6)

350×150(14×6)

450×150(18×6)

Max. Blade Pitch Angle-°

No. of Blades

Blade Operating Speed-rpm

85-138

61-131

Engine

HondaGX160

Robin EY20

HondaGX160

Robin EY20

HondaGX160

Robin EY20

Honda

GX270

Robin

EY27

Engine Type

4-Stroke Gasoline

Max. Power Output-hp(kw)

5.5(4.1)

5.0(3.7)

5.5(4.1)

5.0(3.7)

5.5(4.1)

5.0(3.7)

9.0(6.7)

Max. Engine Speed-rpm

3600

ET24 Power Trowel

ET32 Power Trowel

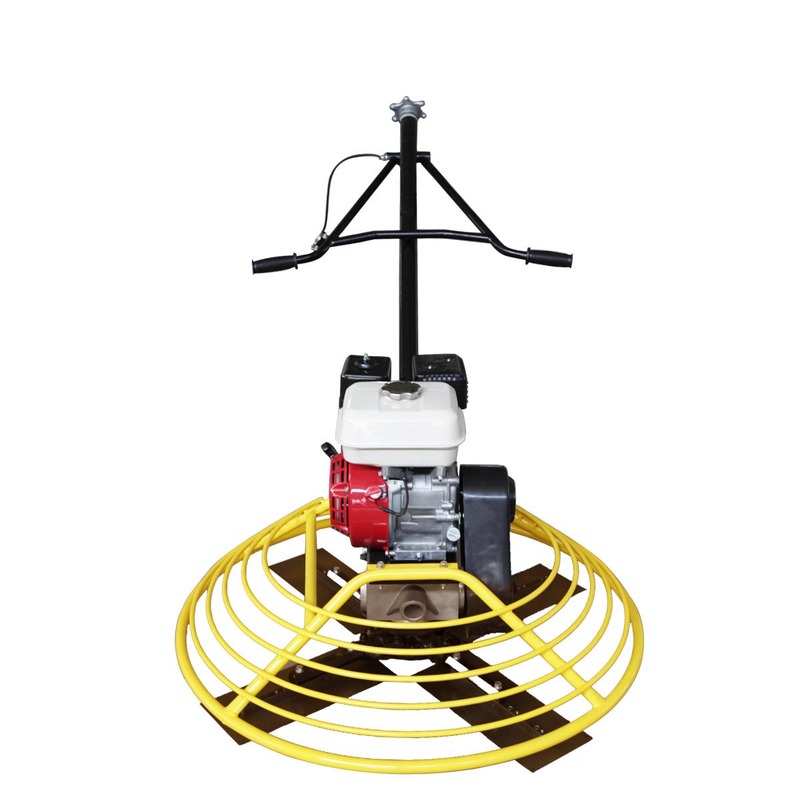

PF36 Power Trowel
